This guide consolidates all common ONYX RCR 80V charger issues into one step-by-step reference, covering charging failures, overheating, fan issues, display problems, and safe servicing.

Follow the sections in order to diagnose and resolve most charging-related problems.

Before You Begin (Safety First)

Before inspecting or servicing the charger:

• Unplug the charger from the wall outlet (AC)

• Disconnect the charger from the battery (DC)

• Allow the charger to cool completely if it was recently in use

1) Charger Not Charging the Battery

If your charger powers on but does not charge, this is most often caused by protection systems or settings, not a hardware failure.

A) Battery & Charger Temperature Protection

Both the battery and the charger include thermal safeguards.

Battery temperature (post-ride)

• Charging immediately after riding may be blocked by the BMS

• Recommendation: Wait at least 30 minutes after riding before charging

Charger overheat protection behavior

• 80–85°C: Charger reduces output to 6A

• 85–90°C: Charger reduces output to 3A

• Above 90°C: Charger stops charging (0A)

Recovery behavior:

• Charging automatically resumes once temperature drops below 75°C

• Ensure the charger is in a well-ventilated area

• Confirm the cooling fan is unobstructed

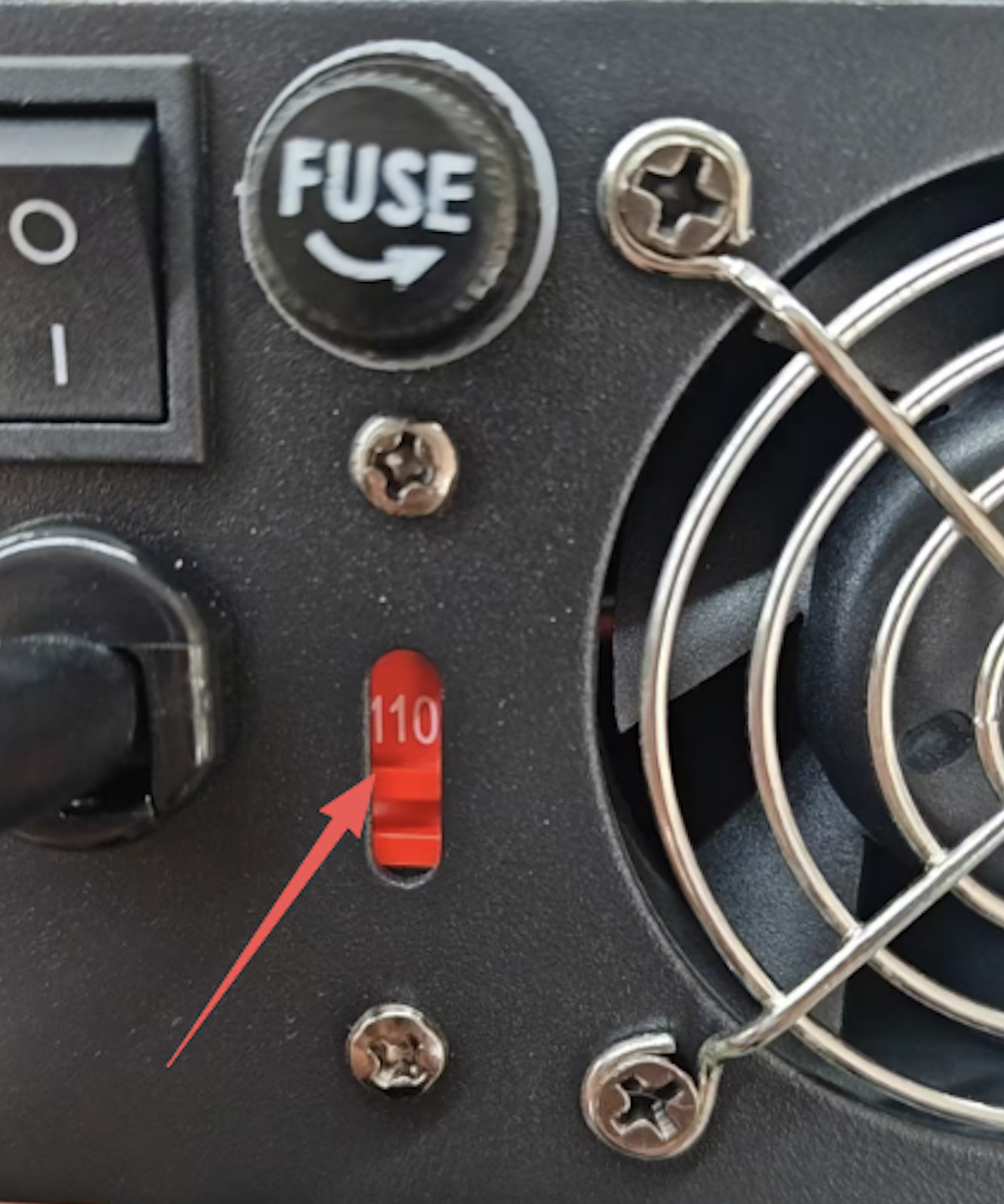

B) Manual Voltage Input Switch (110V / 220V)

The charger has a manual voltage selector switch.

110V regions (USA / Canada)

• If set to 220V, the charger will not charge

220V regions (EU / EV charging stations)

• If set to 110V, the charger will be permanently damaged

Action:

• Always verify the voltage switch matches your outlet before plugging in.


• Confirm the 110v switch is fully seated and clicked into the correct position or the charger will not charge


C) Understanding Display & LED Indicators

LED status

• Red LED: Actively charging

• Green LED: Standby or fully charged

Safety fault indicators (on display)

• Output overvoltage (above 94.15V)

• Output overcurrent (above 11A)

• Reverse polarity

• Short circuit

If a fault is detected, the charger will shut down automatically for safety.

D) Battery Health & Auto-Recharge Behavior

• The charger includes an auto-recharge function

• If the battery is nearly full, the charger may shut off and only restart once voltage drops

• If a blocking voltage or internal battery connection fault is detected, charging will stop

2) Cooling Fan Issues (Noise, Not Spinning, Overheating)

The cooling fan is critical for safe charger operation.

Common fan problems

• Loud grinding or imbalance noise (often caused by drops)

• Fan not spinning

• Dust buildup causing stuttering or seizing

Temporary fixes (cleaning/lubrication) may help, but fan replacement is strongly recommended if malfunction is present.

Replacing the Cooling Fan

Tools needed

• Phillips head screwdriver

• Needle-nose pliers (optional)

Step-by-step

1. Unplug charger from AC and battery

2. Remove screws from side panels and top cover

3. Remove fan guard and fan (four screws)

4. Disconnect fan cable from mainboard

5. Install new fan:

   • Plug into same port

   • Ensure airflow direction blows out of the charger

6. Reinstall fan guard and housing

Maintenance tip

• Periodically blow compressed air through the fan vents

• Store the charger in a clean, dry environment

3) Charger Display Issues (Flickering, Scrambled, Blank)

The digital display provides charging data but is vulnerable to impact.

Symptoms indicating replacement is needed

• Flickering screen

• Scrambled display

• Completely blank screen

Replacing the Digital Display

Tools needed

• Small Phillips head screwdriver

• Needle-nose pliers (optional)


Step-by-step

1. Disconnect charger from AC and battery

2. Remove screws securing the display end panel

3. Locate and unplug the white ribbon cable

4. Remove the damaged display

5. Install the new display:

   • Snap into mounting position

   • Reconnect ribbon cable (keyed)

6. Reassemble housing carefully, avoiding pinched wires

Display care tips

• Avoid dropping the charger (approx. 2.5kg)

• Store flat and stable

• Do not place heavy objects on top of the unit

4) Physical Handling & Storage Best Practices

• Avoid drops—internal transformers and circuitry are sensitive

• Store in a dry environment

• Storage temperature range: -40°C to +70°C

• Keep ventilation ports clear during use

Quick Troubleshooting Summary

Still Not Charging?

If:

• Voltage switch is correct

• Charger is cool and ventilated

• Fan does not spin or display remains blank

Please contact support for further assistance.
