This guide, written by fellow ONYX rider Dmitriy Sidorov, explains how to clone your original RCR key fob onto a compatible cloning remote. Thank you Dmitriy!!

Before You Begin

You will need:

• Your original ONYX key fob
• A compatible cloning remote


Step 1: Clear the Memory of the New Cloner

Before cloning, the new remote must be reset.

Reset Procedure

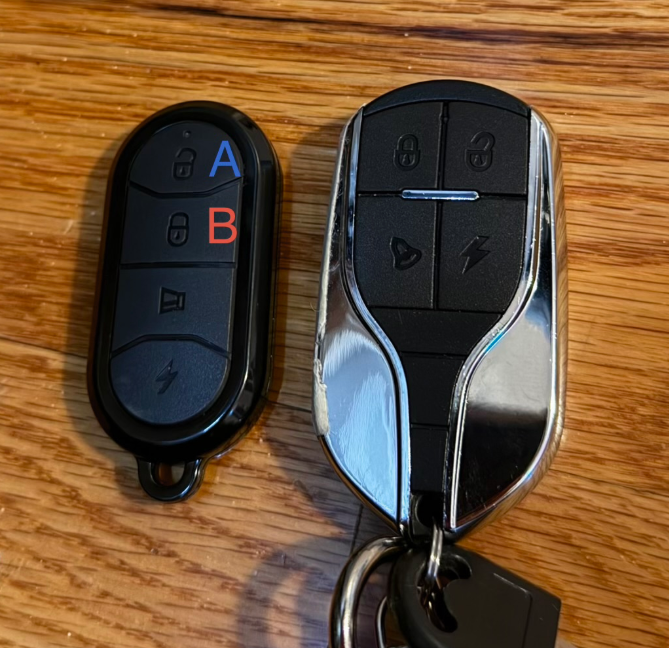

1. Press and hold the top two buttons directly below the LED light simultaneously:
   • Button A (🔓) & Button B (🔒)
2. Continue holding Button A (🔓).
3. Release Button B (🔒) while continuing to hold Button A (🔓)
4. Press Button B (🔒) three times while still holding Button A (🔓)
5. Release Button A (🔓).

Successful Reset Indicator

• The LED should begin rapidly flashing
• This indicates the cloner memory was successfully cleared

Step 2: Clone the ONYX Key Fob

Position the Remotes

1. Hold the original ONYX fob and the cloning remote nose-to-nose.

Keeping the remotes very close together improves signal transfer.

Clone Procedure

1. On the cloning remote, press and hold the button you want to program.
2. While holding it, press and hold the corresponding button on the original ONYX fob.
3. Continue holding both buttons.

Successful Clone Indicator

The LED on the cloning remote should:

• Begin rapidly flashing

This indicates the code was learned successfully.

4. Release both buttons.

Step 3: Test the Cloned Remote

1. Walk to the bike.
2. Test the programmed button on the cloned remote.

Confirm:

• Lock/unlock functions work properly
• The bike responds normally

Important Notes

• Keep both remotes close together during cloning
• Weak batteries can interfere with programming
• If cloning fails, repeat the memory reset process and try again
