This guide provides the key dimensions, rider fitment recommendations, and popular ergonomic upgrades for the ONYX RCR 80V.

RCR 80V Dimensions

Specification	Shorty	Standard
Length	69"	69"
Width	27"	27"
Overall Height	38"	40"
Handlebar Height	40"	42"
Seat Height	30.5"	32.5"

Additional Specifications

• Weight: ~150–155 lbs (with battery)
• Payload Capacity: Up to 400 lbs
• Wheelbase: 46"
• Handlebar Clamp Size: 1" (25 mm)
• Handlebar Ends: 7/8"
• Overall Handlebar Width: 30"

Note: Unlike the 72V RCR, which uses a full-length 7/8" handlebar, the RCR 80V uses a 1" center clamp with 7/8" handlebar ends.

Which Model Is Right for Me?

Shorty (30.5" Seat Height)

Best for riders who:

• You are around 5'9"

• Prefer easier footing at stops

• Want a lower center of gravity
• Prefer a more confidence-inspiring ride

Benefits:

• Easier to place feet on the ground
• Slightly more agile handling
• Lower overall riding position

Standard (32.5" Seat Height)

Best for riders who:

• You are 5'11" or taller

• Have longer legs

• Prefer a more upright riding position
• Want additional leg room

Benefits:

• More relaxed ergonomics
• Less knee bend
• Improved comfort for taller riders

Rider Height Reference

The photos below provide real-world examples of riders of different heights on the RCR 80V to help you visualize the fit.

Shorty

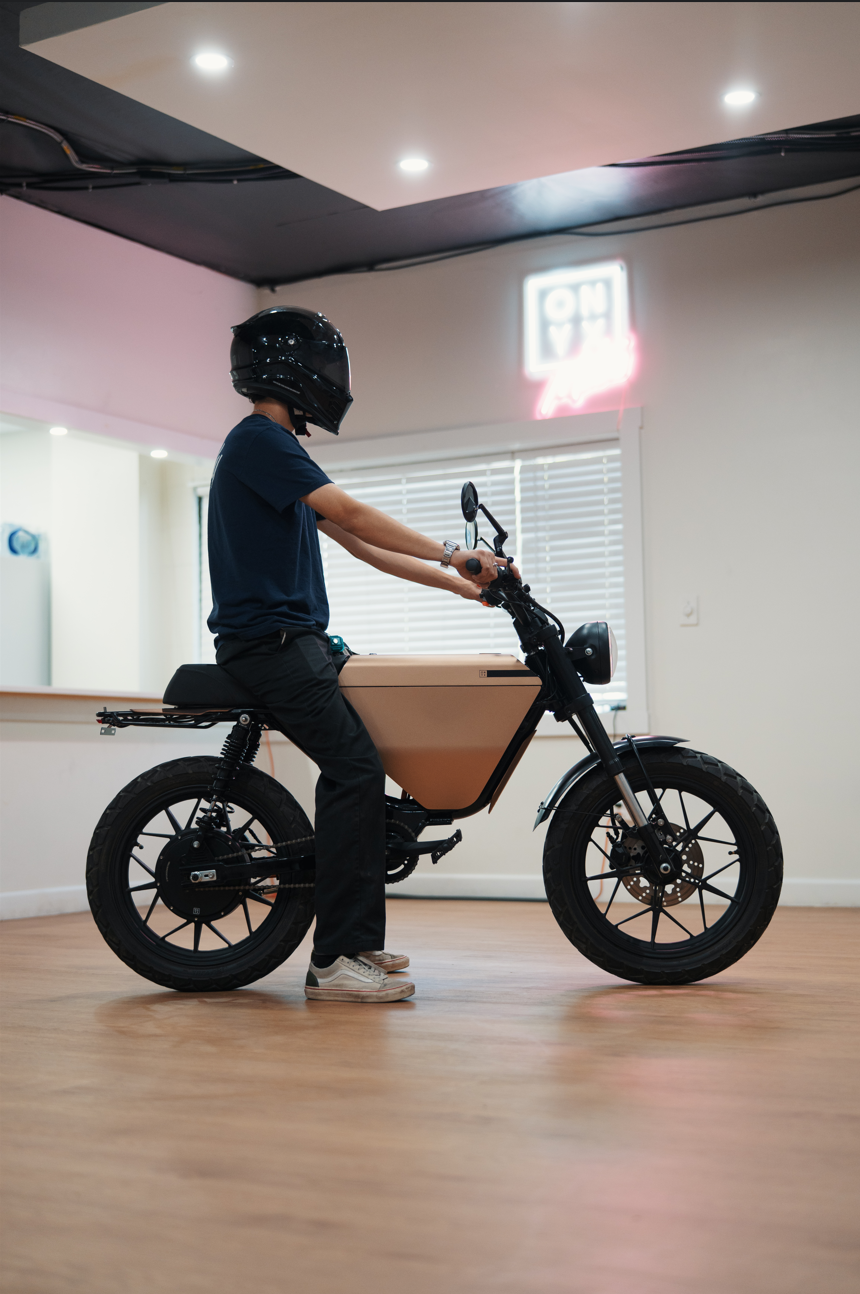

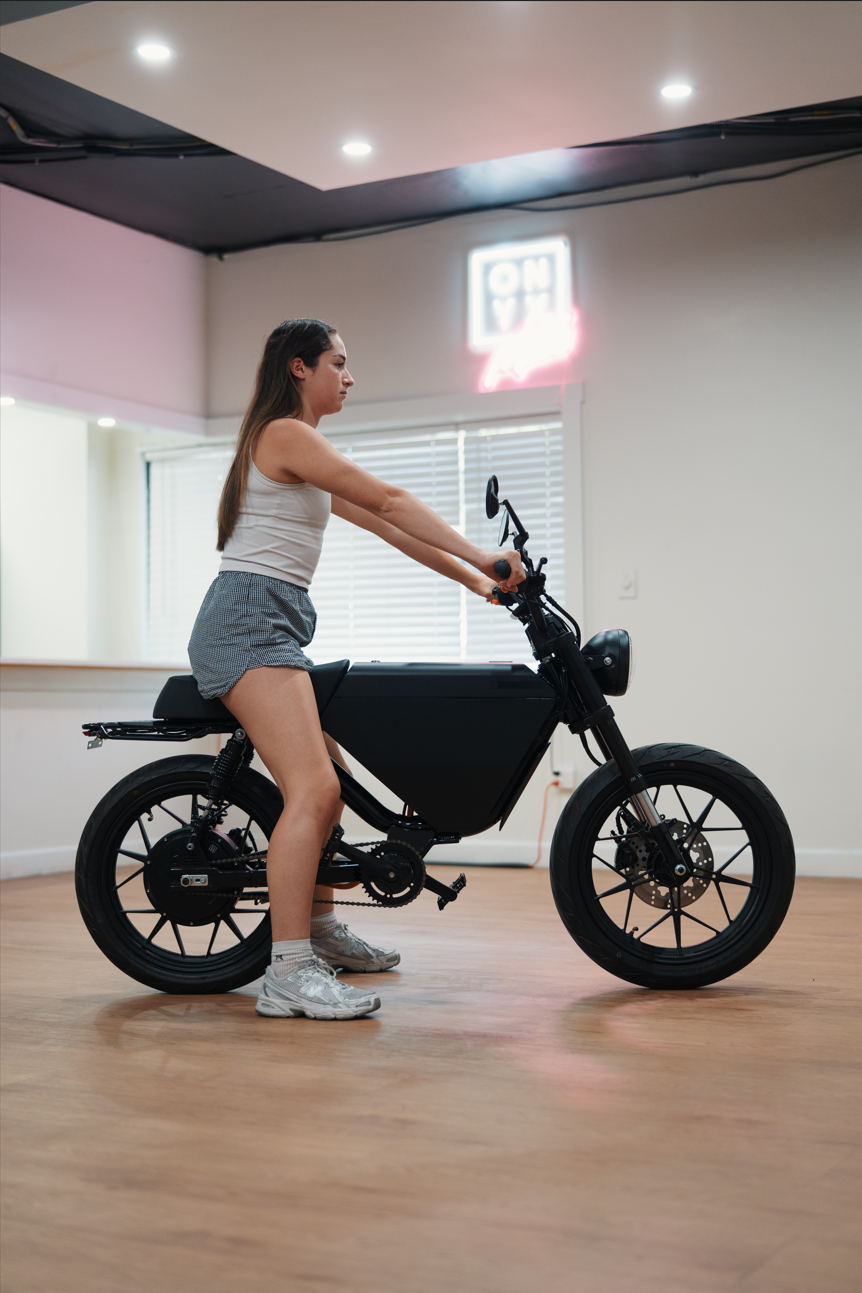

5"7 Rider on the Street Shorty

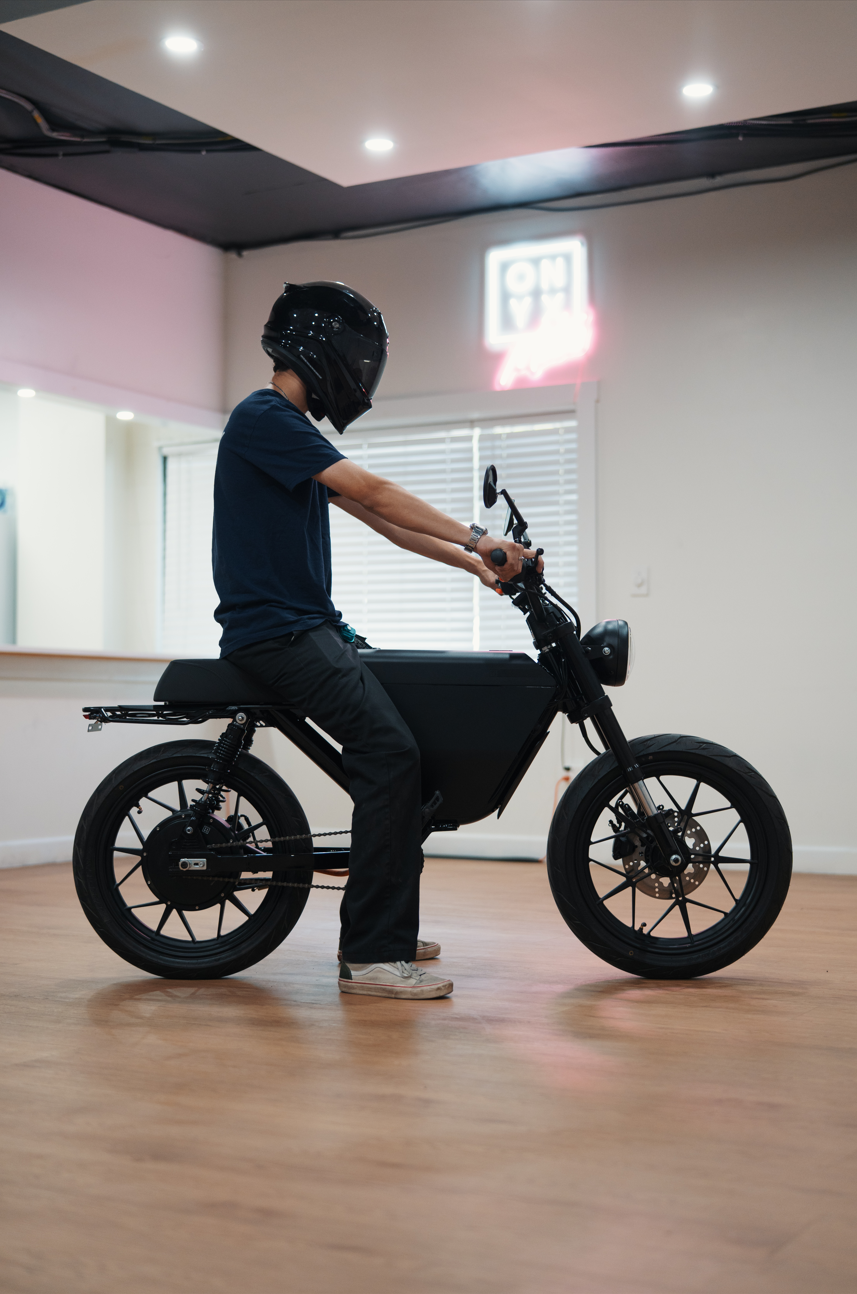

6"1 Rider on the Street Shorty

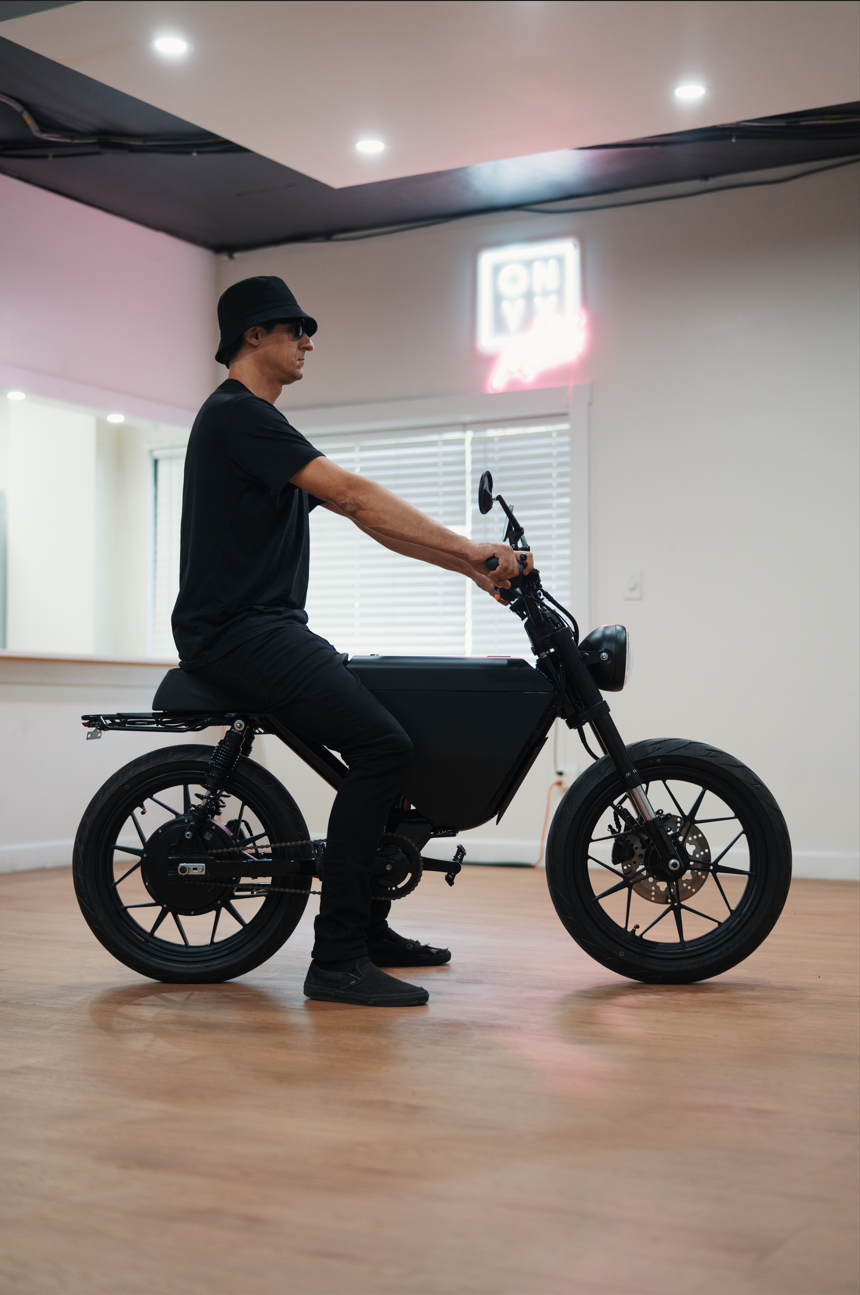

6"3 Rider on the Street Shorty

Standard

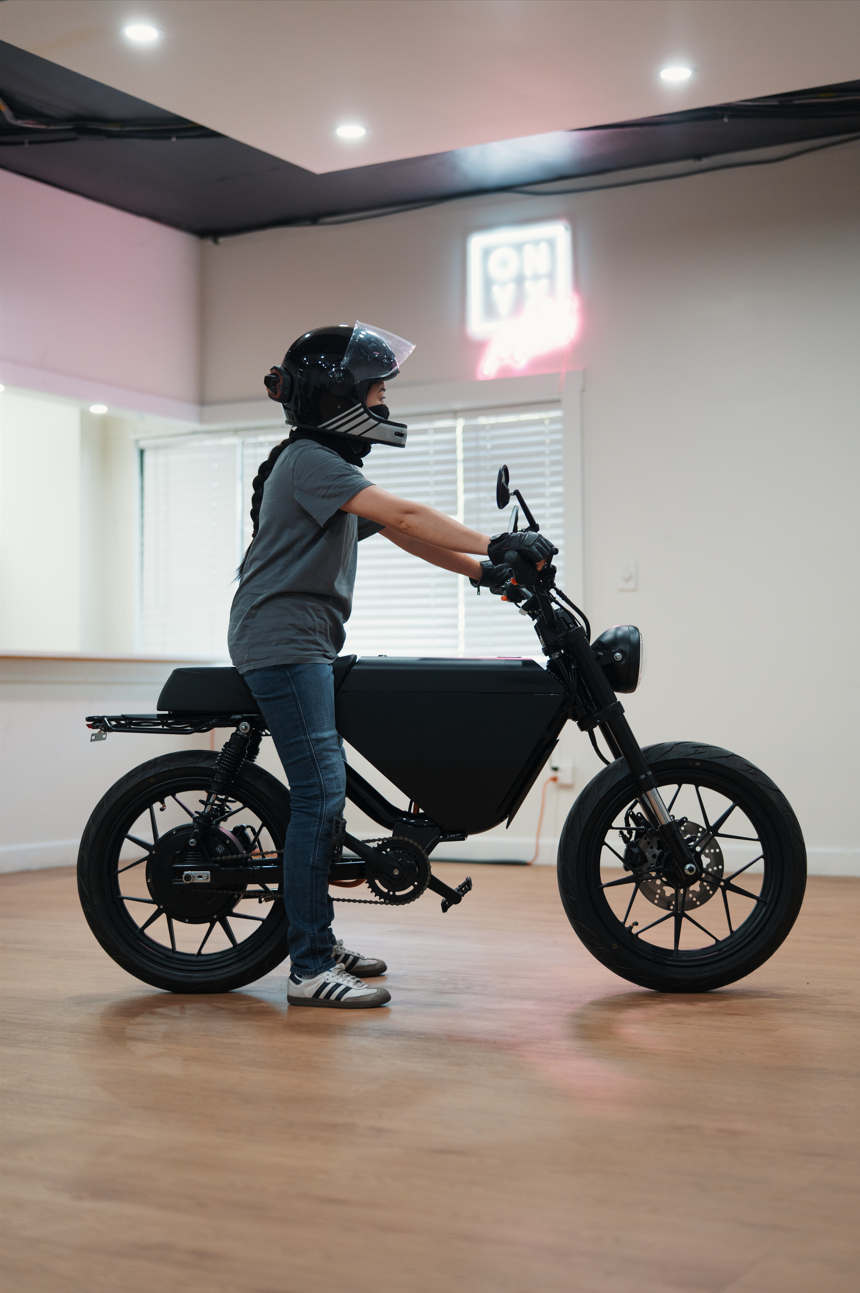

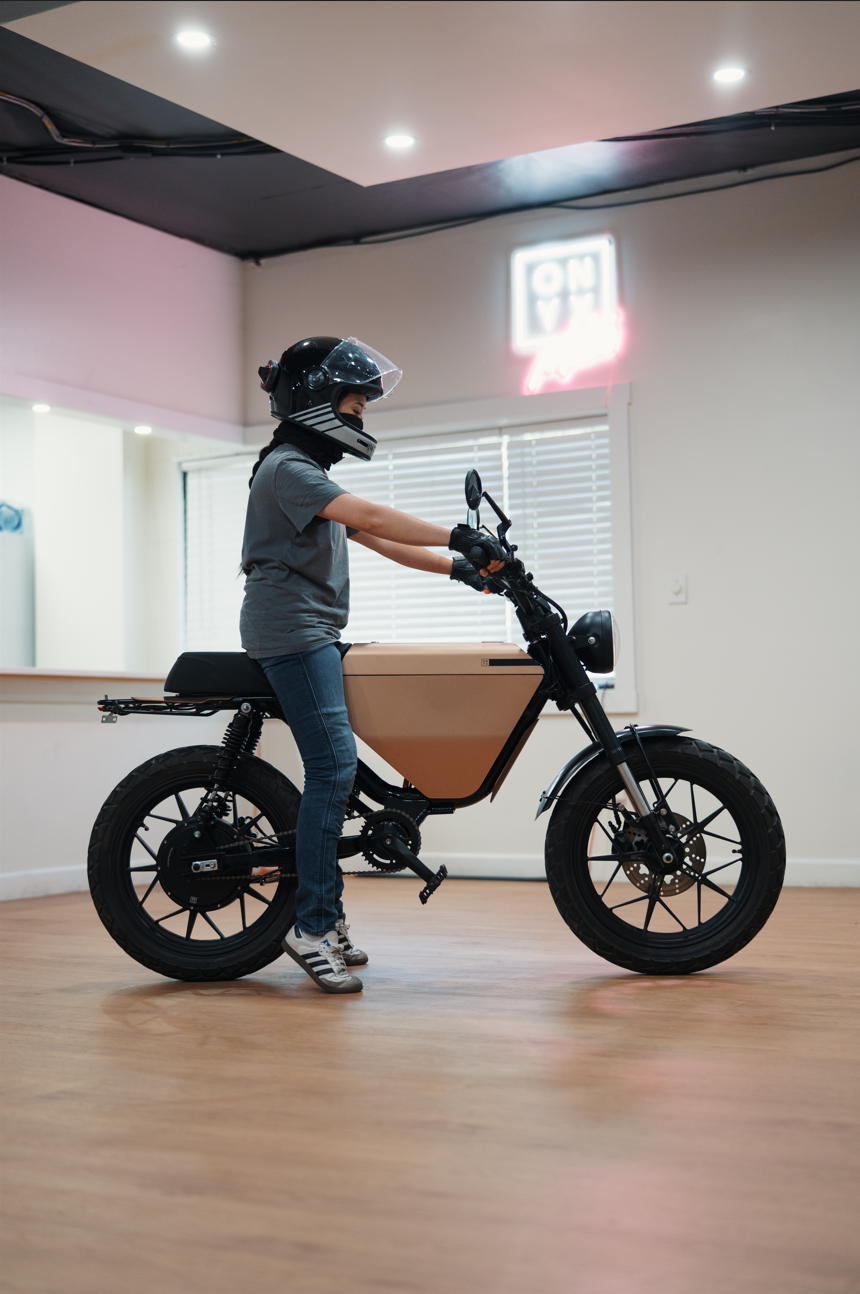

5" Rider on the Dual Sport Standard

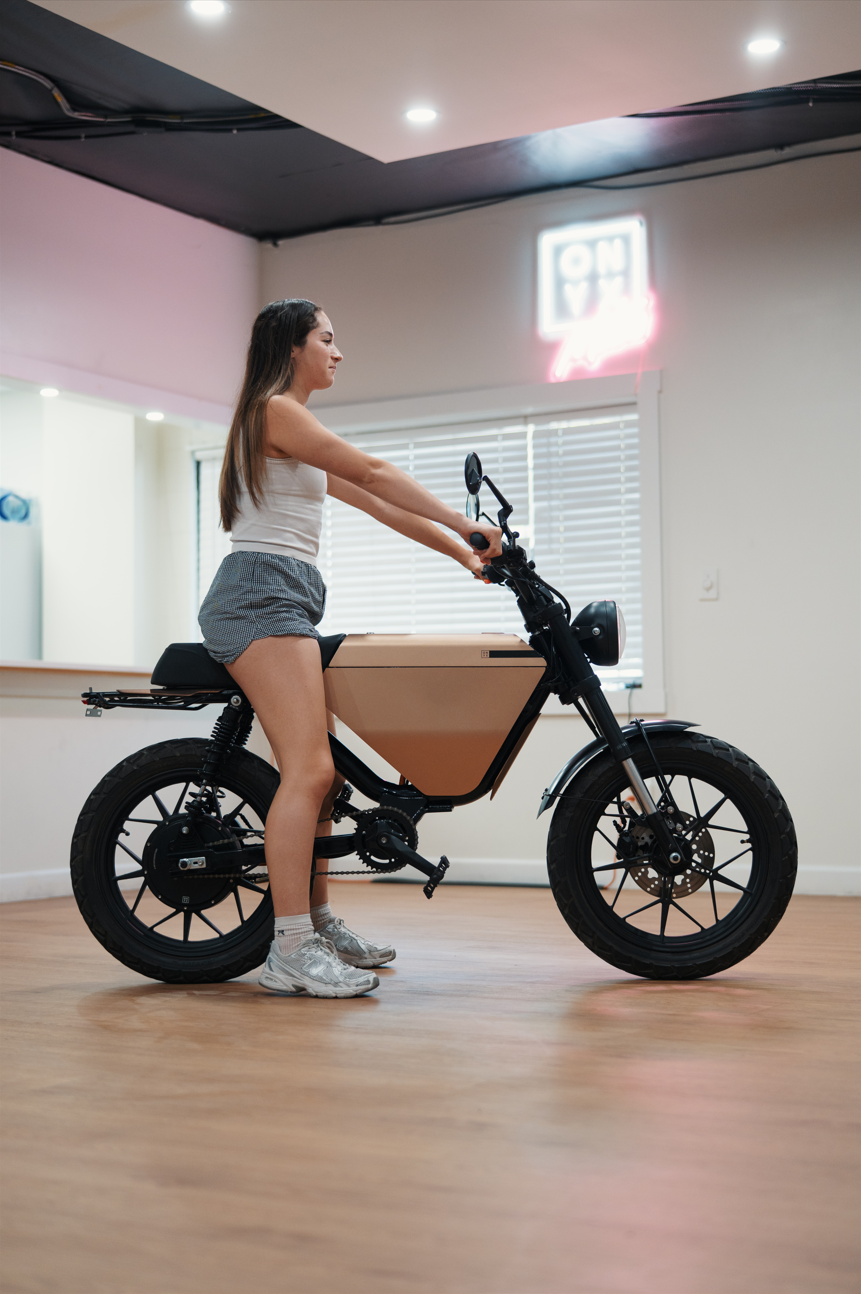

5"7 Rider on the Dual Sport Standard

6"1 Rider on the Dual Sport Standard

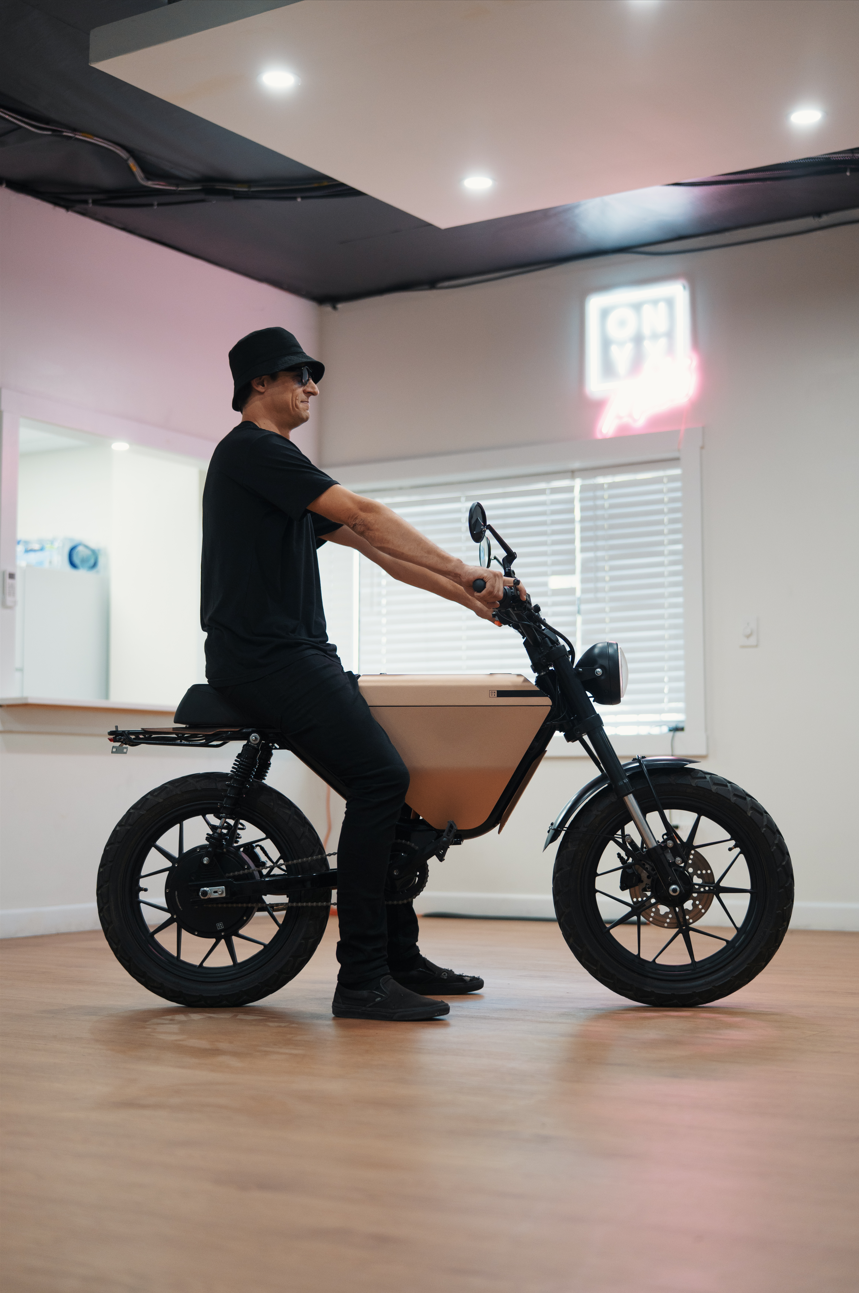

6"3 Rider on the Dual Sport Standard

ProTaper SE Series 7/8" Standard Handlebars
https://a.co/d/0bisOpNh

Required 1" to 7/8" Shims
https://a.co/d/01kYArpy

These bars:

• Raise hand position
• Improve comfort for taller riders
• Reduce forward lean

For a Lower Riding Position

Lower Handlebars

FLYPIG Motorcycle 7/8" Handlebars
https://a.co/d/0gXtUkmC

Required 1" to 7/8" Shims
https://a.co/d/01kYArpy

These bars:

• Lower rider posture
• Create a more aggressive riding position
• Reduce overall reach height

Lower Seat

RAU x Steady Garage Slim Seat
https://www.steadygarage.com/products/rau-x-steady-garage-double-stitch-seat-onyx-rcr-80v-slim-black

This seat lowers the rider slightly while providing a slimmer riding profile.

Pedal Delete / Peg Kits

Peg Conversion Kit

https://www.steadygarage.com/collections/onyx/products/chimera-pegs-conversion-bicycle-pedal-delete-kit-round-grippy-stunt-onyx-super73

Official ONYX Peg Kit

Coming Soon

Summary

Choose the Shorty if you want:

• Lower seat height
• Better footing
• Lower center of gravity

Choose the Standard if you want:

• More leg room
• More upright ergonomics
• Greater comfort for taller riders

The RCR 80V is highly customizable, allowing you to fine-tune your riding position with different handlebars, seats, and peg kits to match your preferred riding style.
